The Class responsible for drawing the basic 3D Renderable objects onto the screen. More...

#include <renderable3d.h>

Inheritance diagram for fireworks::graphics::Renderable3D:

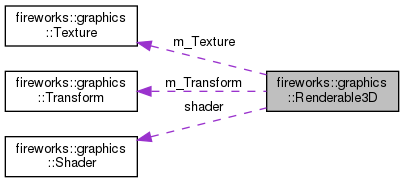

Collaboration diagram for fireworks::graphics::Renderable3D:

Public Member Functions
	Renderable3D (Transform transform, glm::vec4 color, Primitive3D primitive3d)
	Creates the renderable. More...

	Renderable3D (Transform transform, glm::vec4 color, Primitive3D primitive3d, Shader *shader)
	Creates the renderable. More...

	Renderable3D (Transform transform, glm::vec4 color, Primitive3D primitive3d, Shader shader, Texture texture)
	Creates the renderable. More...

	Renderable3D ()
	Create a empty renderable. More...

virtual	~Renderable3D ()

virtual void	submit (Renderer3D *renderer) const
	Virtual overload of the submit function, customize the way you can submit the renderable to the renderer. More...

const Transform &	getTransform () const
	Gets the reference to the transform of the renderable object. More...

const glm::vec4 &	getColor () const
	Gets the reference to the color of the renderable object. More...

const std::vector< glm::vec2 > &	getUV () const
	Gets the reference to the texture coordinates of the renderable. More...

const GLuint	getTID () const
	Gets the texture ID of the texture being used by the renderable. More...

const Primitive3D &	gerPrimitive () const
	Gets the 3D primitive that is being rendered. More...

std::vector< VertexData3D >	getVerts () const
	Gets vertices of the 3d renderable. More...

GLuint	getVertsSize () const
	Gets the vertices count of the 3d renderable. More...

std::vector< GLushort >	getInidces () const
	Gets the indices of the 3d renderable. More...

GLsizei	getIndicesSize () const
	Gets the indices count of the 3d renderable. More...

Public Attributes
std::uint32_t	objectID
	The unique object ID of renderable object. More...

Shader *	shader
	The shader used to draw the renderable object. More...

Texture *	m_Texture
	The texture used to draw the renderable object. More...

Protected Attributes
Transform	m_Transform
	The transform of the object in 3D space. More...

glm::vec4	m_Color
	Vertex color of the renderable. More...

Primitive3D	m_Primitive3D
	The basic primitive that is being rendered, (Does not denote the primitive used to render the 3d object) More...

std::vector< glm::vec2 >	m_UV
	The texture coordinates of the 3d renderable. More...

std::vector< VertexData3D >	m_Vertices
	The vertices pool of the 3d object. More...

std::vector< GLushort >	m_Indices
	The indices pool of the 3d object. More...

Detailed Description

The Class responsible for drawing the basic 3D Renderable objects onto the screen.

Every 3D renderable object is derived from this class

Constructor & Destructor Documentation

◆ Renderable3D() [1/4]

fireworks::graphics::Renderable3D::Renderable3D	(	Transform	transform,
		glm::vec4	color,
		Primitive3D	primitive3d
	)

inline

Creates the renderable.

Parameters

transform	The Transform of the renderable
color	The color of the renderable
primitive3d	The primitive shape of the renderable

Note: This overload is to be used with graphics::BatchRenderer3D

◆ Renderable3D() [2/4]

fireworks::graphics::Renderable3D::Renderable3D	(	Transform	transform,
		glm::vec4	color,
		Primitive3D	primitive3d,
		Shader *	shader
	)

inline

Creates the renderable.

Parameters

transform	The Transform of the renderable
color	The color of the renderable The primitive shape of the renderable

Note: This overload is to be used with graphics::ShotRenderer3D

◆ Renderable3D() [3/4]

fireworks::graphics::Renderable3D::Renderable3D	(	Transform	transform,
		glm::vec4	color,
		Primitive3D	primitive3d,
		Shader *	shader,
		Texture *	texture
	)

inline

Creates the renderable.

Parameters

transform	The Transform of the renderable
color	The color of the renderable The primitive shape of the renderable

Note: This overload is to be used with graphics::ShotRenderer3D

◆ Renderable3D() [4/4]

fireworks::graphics::Renderable3D::Renderable3D ( )

inline

Create a empty renderable.

◆ ~Renderable3D()

virtual fireworks::graphics::Renderable3D::~Renderable3D ( )

inlinevirtual

Member Function Documentation

◆ gerPrimitive()

const Primitive3D& fireworks::graphics::Renderable3D::gerPrimitive ( ) const

inline

Gets the 3D primitive that is being rendered.

◆ getColor()

const glm::vec4& fireworks::graphics::Renderable3D::getColor ( ) const

inline

Gets the reference to the color of the renderable object.

◆ getIndicesSize()

GLsizei fireworks::graphics::Renderable3D::getIndicesSize ( ) const

inline

Gets the indices count of the 3d renderable.

◆ getInidces()

std::vector<GLushort> fireworks::graphics::Renderable3D::getInidces ( ) const

inline

Gets the indices of the 3d renderable.

◆ getTID()

const GLuint fireworks::graphics::Renderable3D::getTID ( ) const

inline

Gets the texture ID of the texture being used by the renderable.

◆ getTransform()

const Transform& fireworks::graphics::Renderable3D::getTransform ( ) const

inline

Gets the reference to the transform of the renderable object.

◆ getUV()

const std::vector<glm::vec2>& fireworks::graphics::Renderable3D::getUV ( ) const

inline

Gets the reference to the texture coordinates of the renderable.

◆ getVerts()

std::vector<VertexData3D> fireworks::graphics::Renderable3D::getVerts ( ) const

inline

Gets vertices of the 3d renderable.

◆ getVertsSize()

GLuint fireworks::graphics::Renderable3D::getVertsSize ( ) const

inline

Gets the vertices count of the 3d renderable.

◆ submit()

virtual void fireworks::graphics::Renderable3D::submit ( Renderer3D * renderer ) const

inlinevirtual

Virtual overload of the submit function, customize the way you can submit the renderable to the renderer.

Member Data Documentation

◆ m_Color

glm::vec4 fireworks::graphics::Renderable3D::m_Color

protected

Vertex color of the renderable.

◆ m_Indices

std::vector<GLushort> fireworks::graphics::Renderable3D::m_Indices

protected

The indices pool of the 3d object.

◆ m_Primitive3D

Primitive3D fireworks::graphics::Renderable3D::m_Primitive3D

protected

The basic primitive that is being rendered, (Does not denote the primitive used to render the 3d object)

◆ m_Texture

Texture* fireworks::graphics::Renderable3D::m_Texture

The texture used to draw the renderable object.

◆ m_Transform

Transform fireworks::graphics::Renderable3D::m_Transform

protected

The transform of the object in 3D space.

◆ m_UV

std::vector<glm::vec2> fireworks::graphics::Renderable3D::m_UV

mutableprotected

The texture coordinates of the 3d renderable.

◆ m_Vertices

std::vector<VertexData3D> fireworks::graphics::Renderable3D::m_Vertices

protected

The vertices pool of the 3d object.

◆ objectID

std::uint32_t fireworks::graphics::Renderable3D::objectID

The unique object ID of renderable object.

◆ shader

Shader* fireworks::graphics::Renderable3D::shader

The shader used to draw the renderable object.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/fireworks-engine/checkouts/latest/Fireworks Engine/Fireworks Core/src/graphics/renderables/renderable3d.h
/home/docs/checkouts/readthedocs.org/user_builds/fireworks-engine/checkouts/latest/Fireworks Engine/Fireworks Core/src/graphics/renderers/batchrenderer3d.cpp
