fireworks::graphics::Model Class Reference
A 3D model object loaded externally. More...
#include <model.h>
Inheritance diagram for fireworks::graphics::Model:

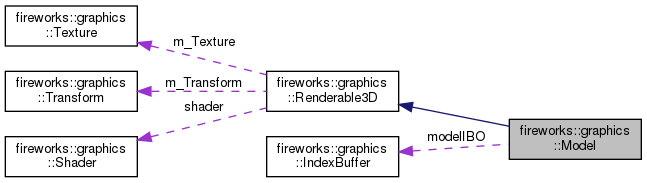

Collaboration diagram for fireworks::graphics::Model:
Public Member Functions | |
| Model (std::string path, Transform transform, Shader *shader) | |
| Loads an external 3d model. More... | |
| ~Model () | |
| Mesh & | getMasterMesh () |
| Returns the root mesh that is a congregation of all sub-meshes. More... | |
 Public Member Functions inherited from fireworks::graphics::Renderable3D | |
| Renderable3D (Transform transform, glm::vec4 color, Primitive3D primitive3d) | |
| Creates the renderable. More... | |
| Renderable3D (Transform transform, glm::vec4 color, Primitive3D primitive3d, Shader *shader) | |
| Creates the renderable. More... | |
| Renderable3D (Transform transform, glm::vec4 color, Primitive3D primitive3d, Shader *shader, Texture *texture) | |
| Creates the renderable. More... | |
| Renderable3D () | |
| Create a empty renderable. More... | |
| virtual | ~Renderable3D () |
| const Transform & | getTransform () const |
| Gets the reference to the transform of the renderable object. More... | |
| const glm::vec4 & | getColor () const |
| Gets the reference to the color of the renderable object. More... | |
| const std::vector< glm::vec2 > & | getUV () const |
| Gets the reference to the texture coordinates of the renderable. More... | |
| const GLuint | getTID () const |
| Gets the texture ID of the texture being used by the renderable. More... | |
| const Primitive3D & | gerPrimitive () const |
| Gets the 3D primitive that is being rendered. More... | |
| std::vector< VertexData3D > | getVerts () const |
| Gets vertices of the 3d renderable. More... | |
| GLuint | getVertsSize () const |
| Gets the vertices count of the 3d renderable. More... | |
| std::vector< GLushort > | getInidces () const |
| Gets the indices of the 3d renderable. More... | |
| GLsizei | getIndicesSize () const |
| Gets the indices count of the 3d renderable. More... | |
Public Attributes | |
| GLuint | vertexCount |
| The vertex count of the 3d model. More... | |
| GLuint | trisCount |
| The triangles count of the 3d model. More... | |
| std::vector< SubMesh > | subMeshes |
| Collections of sub-meshes that make up the 3d models. More... | |
| IndexBuffer * | modelIBO |
| The index buffer of the 3d model. More... | |
| Public Attributes inherited from fireworks::graphics::Renderable3D | |
| std::uint32_t | objectID |
| The unique object ID of renderable object. More... | |
| Shader * | shader |
| The shader used to draw the renderable object. More... | |
| Texture * | m_Texture |
| The texture used to draw the renderable object. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from fireworks::graphics::Renderable3D | |
| Transform | m_Transform |
| The transform of the object in 3D space. More... | |
| glm::vec4 | m_Color |
| Vertex color of the renderable. More... | |
| Primitive3D | m_Primitive3D |
| The basic primitive that is being rendered, (Does not denote the primitive used to render the 3d object) More... | |
| std::vector< glm::vec2 > | m_UV |
| The texture coordinates of the 3d renderable. More... | |
| std::vector< VertexData3D > | m_Vertices |
| The vertices pool of the 3d object. More... | |
| std::vector< GLushort > | m_Indices |
| The indices pool of the 3d object. More... | |
Detailed Description
A 3D model object loaded externally.
Constructor & Destructor Documentation
◆ Model()
Loads an external 3d model.
- Parameters
-
path The path of the 3d models transform The transform of the 3d model in 3D space shader The shader with which the 3d models is rendered with
◆ ~Model()
| fireworks::graphics::Model::~Model | ( | ) |
Member Function Documentation
◆ getMasterMesh()
|
inline |
Returns the root mesh that is a congregation of all sub-meshes.
Member Data Documentation
◆ modelIBO
| IndexBuffer* fireworks::graphics::Model::modelIBO |
The index buffer of the 3d model.
◆ subMeshes
| std::vector<SubMesh> fireworks::graphics::Model::subMeshes |
Collections of sub-meshes that make up the 3d models.
◆ trisCount
| GLuint fireworks::graphics::Model::trisCount |
The triangles count of the 3d model.
◆ vertexCount
| GLuint fireworks::graphics::Model::vertexCount |
The vertex count of the 3d model.
The documentation for this class was generated from the following files:
